High Temperature Continuity The Most Competitive Heat Shrinkable Identification Sleeves Design for Wire

  • 1
  • 2

Brand Name : NONE

Model Number : 2.0mm-40.0mm

Certification : ISO9001

Place of Origin : China

MOQ : 2m

Price : negotiable

Payment Terms : T/T

Supply Ability : 1000000m/day

Delivery Time : 3-4days

Packaging Details : carton

Contact Now

Description :

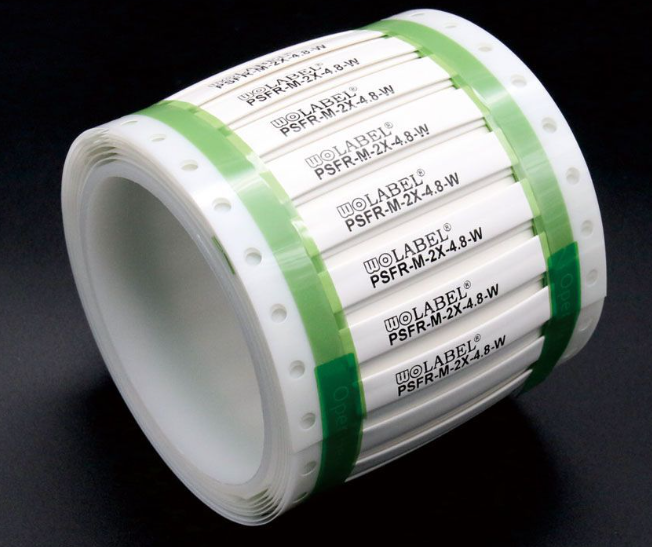

Our marker sleeve is flattened , heat shrinkable tubing desiged for wire and cable identification in high temperature applications or where extreme resistance to fuels , lubricants and cleaning solvents is required . When it is printed with something recommended printers and ink ribbon , the marks remain legible , durable , even when exposed to abrasion , aggressive cleaning solvents , and industrral fluids .


Features


Material The sleeving shall be fabriacted from irradiated , thermally stabillized and flame retarded modified PVDF
Application range Aerospace , defense and mass transit industries
Operating temperature range -55°C~+225°C
Minimum recovery temperature +150°C
Maximum storage temperature +50°C
Shrink ratio 2:1
Color White , Yellow , other color is available if ordered
Printing mode Single sided printing and Double sided printing formats available
Supplied mode Either continous type or Ladder format type is available
Recommended Printers Thermal transfer printer
Recommended Ribbons N95 resin ribbon , Black , 100mm ( width ) * 300m ( length)


Dimensions


Part Number As Supplied ( mm ) After recobery ( mm )
ID ( D ) ID ( D ) Single Wall Thickness
2.4 2.4 1.2 0.38±0.8
3.2 3.2 1.6 0.38±0.8
4.8 4.8 2.4 0.38±0.8
6.4 6.4 3.2 0.38±0.8
9.5 9.5 4,8 0.38±0.8
12.7 12.7 6.4 0.38±0.8
19.1 19.1 9.5 0.38±0.08
25.4 25.4 12.7 0.43±0.10
38.1 38.1 19.1 0.43±0.10


model
